N510.xxx NFC Readers
iLOQ N510.xxx NFC Readers can be installed directly to the door leaf or near the door, at a maximum distance of 10 m from a door module.

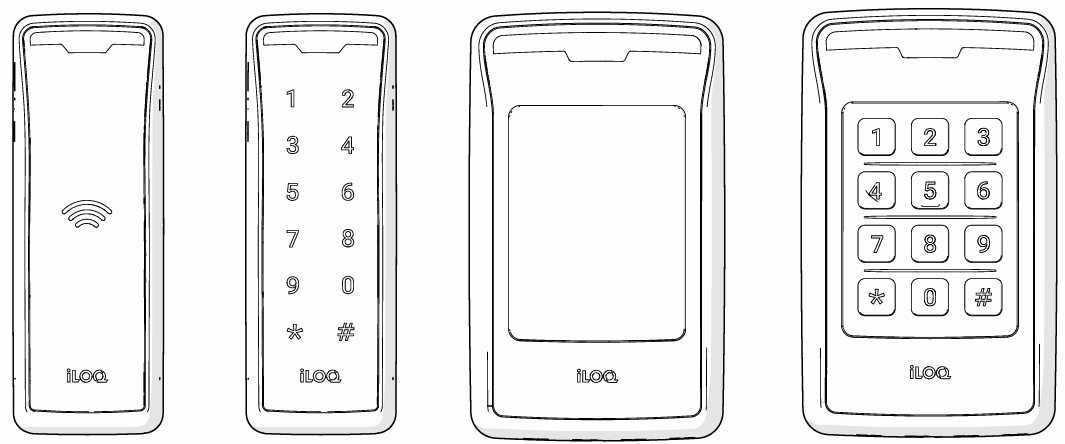

iLOQ N510.xxx NFC Readers are available in the following variants:
-
N510.100 NFC Door reader without a keypad
-
N510.110 NFC/PIN Door reader with a capacitive 2×6 keypad
-
N510.200 NFC Wall reader without a keypad
-
N510.220 NFC/PIN Wall reader with a mechanical 3×4 keypad
iLOQ N510 NFC readers are available with and without a keypad. The variants without a keypad (N510.100 and N510. 200) can be opened with a K5S key, a K55 key fob or an iLOQ phone key. The variants with a keypad (N510.110 and N510. 220) can be used to enhance security by requiring a PIN code in addition to a key, but they can also be used in lower security environments to require just an access code.
iLOQ NFC Readers communicate with other iLOQ Online components through an RS-485 bus and with iLOQ keys wirelessly using NFC.
