Program locks

Program locks with a programming key. In this step, the locks added and saved as drafts earlier are programmed.

Note: Locks must be programmed before they can be taken into use.

Select Locking devices > Program devices

Step 1/4: Devices

1. Select the locks you want to program.
2. Select Next.

Step 2/4: Action

3. Select Program devices.
4. Select Next.

Step 3/4: Summary

5. The summary shows the actions that you decided to perform in the previous steps. Review the summary and select Confirm.

Step 4/4: Feedback

6. In this final step, the actions you confirmed in the previous step will be performed. You can follow the actions and their progress on the screen.

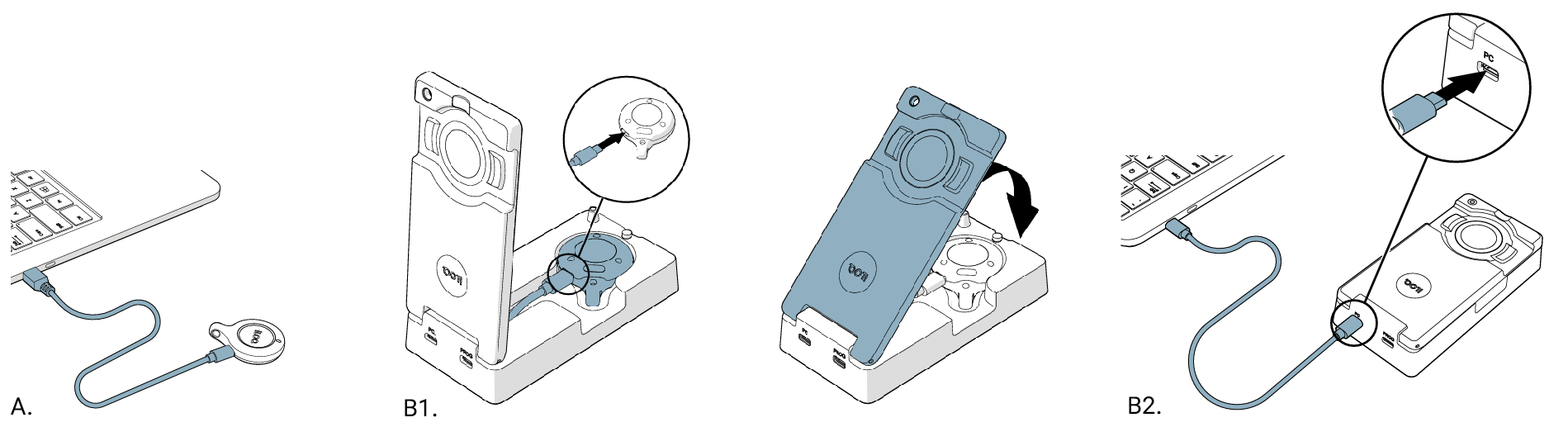

7. Connect your programming key to the USB port of your PC. There are two ways to do this:
   • Connect the programming key directly to the PC with a USB cable (image A.).
   • Connect the programming key to the PC via a programming adapter. First connect the programming key to the adapter (image B1.), and then connect the adapter to your PC with the USB cable (image B2.).

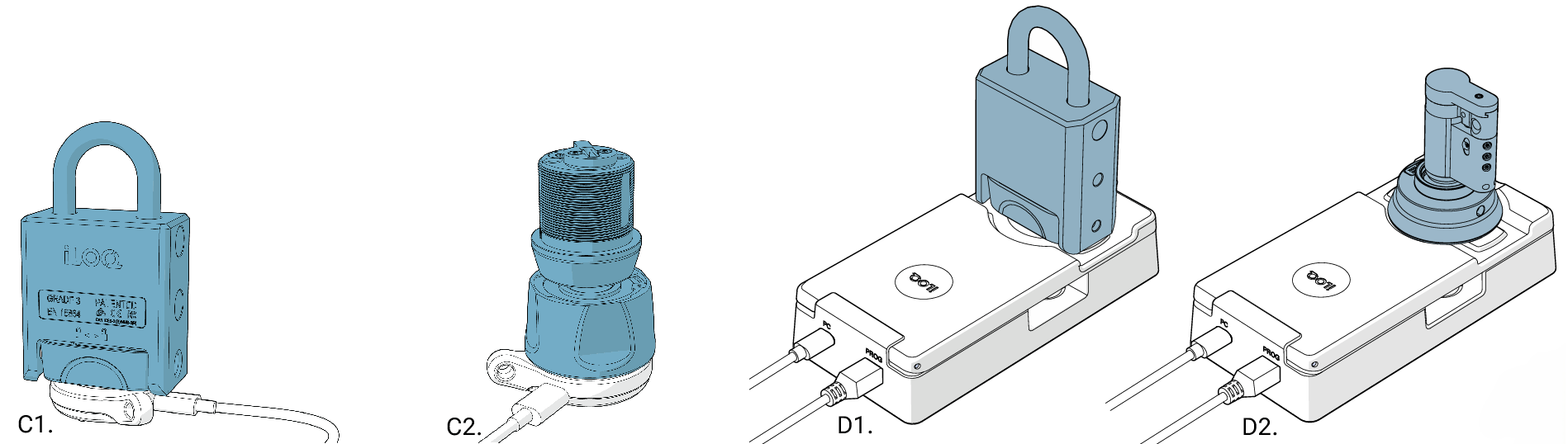

8. After this you’ll be instructed to place empty locks one-by-one against the programming key until all are programmed. There are two ways to do this:
   • Place the lock directly on the programming key (image C1 and C2.).
   • Place the lock on the programming adapter (image D1. and D2.).

8. Follow the on-screen instructions until all the locks are programmed.
9. Select Show summary to view an overview of the performed actions.
10. When you’re done select Close.
